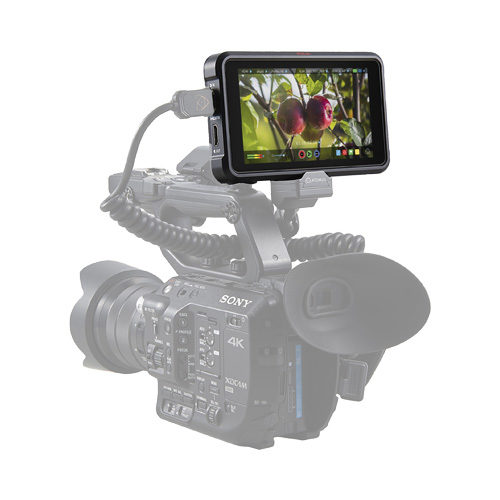

Record like a Ninja!
Record up to 4Kp60 10-bit HDR video direct from your camera’s sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.
The SSD … made Mini!
The new AtomX SSDmini is a little over 1/4 inch tall and 3″ long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!
Small Monitor made perfect
The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.
Record HDR Games
4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!
AtomOS Tools and Pocket Size Playback
AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn’t 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.
Ultimate Pro-Video & Broadcast Monitor
Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.
Edit, finish & upload on Mac & PC
The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.
Endless Open Expansion
Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.
| Manufacturer |
|---|
Specs
| Weight | |
|---|---|
| Without batteries & media | 320g / 11.28oz |
| With batteries & media | – |
| With stand | 6.0kg / 13.2lb |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31mm |
| Construction | Aluminium alloy chassis with ABS polycarbonate back plate |
| Mounting points | 1/4-20 UNCscrew mount; 1x top, 1x bottom |
| Power | |
|---|---|
| Operating power | 10 – 19W |
| Compatible batteries | NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) | 5200mAh – up to 2hrs (monitor & record 4K +60p) |
| 7800mAh – up to 3hrs (monitor & record 4K 60p) | |
| DC In | |
| Continuous power * Patent pending |
Continuous power with external adaptor* |
| Touchscreen | |
|---|---|
| Size | 5” |
| Resolution | 1920 x 1200 |
| PPI | 427 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
| Technology | SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
|---|---|
| AtomHDR | Yes |
| Supported Log formats | Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm |
| HDR Recording (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG |
| HDR Monitoring (Gamma) | Sony SGamut / SGamut3 / SGamut3.cine / BT2020 Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| HDR Monitoring (Gamut) | Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1000nit (+/- 10% @ center) |
| HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
| Video Input/Loop Out | |
|---|---|
| HDMI | 1 x HDMI (2.0) |
| SDI | – |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Video Output (Play Out) | |
|---|---|
| HDMI | 1 x HDMI (2.0) |
| SDI | – |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Supported Loop Out Formats | |
|---|---|
| HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60 |
| SDI to SDI | – |
| Video Signal Conversion | |
|---|---|
| HDMI to SDI | – |
| SDI to HDMI | – |
| AtomXpansion Video Audio Power Extender In/Out | |
|---|---|
| Video | Up to 4Kp60 |
| Audio | 12 channels digital 24-bit 96KHz |
| Power | 5V-16.6V |
| Supported Codecs & Frame Rates (Record & Playback) | |
|---|---|
| Video to ProRes / DNxHR(DNx utilizes a .MOV wrapper) |
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K 1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i, 720p; 50/60p |
| Onboard Processing | |
|---|---|
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes – Loop-out and playback |
| Audio In/Out (48kHz PCM Audio) | |
|---|---|
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | – |
| Audio | Line in / Mic in / Headphone out 2ch 48kHz 24-bit |
| Headphone out | 3.5mm |
| Built-in speakers | Yes |
| Remote Start/Stop | |
|---|---|
| HDMI | Auto HDMI Trigger Supported Protocols – Canon, Sony, Atomos Open Standard |
| SDI | – |
| Other | LANC control – Slave |
| Playback | |
|---|---|
| Playlist / Genlock / LTC | Yes / – / – |
| CDNG (Recorded content) | N/A |
| ProRes (Recorded content) | All recorded files can playback. Playback in slow motion. |
| DNxHR / DNxHD (recorded content) | All recorded files can playback. Playback in slow motion. |
| Recording | |
|---|---|
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes |
| Meta data tagging | Yes (10 tags available) |
| Supported media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications | Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
| XML support | FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools |
| Accessories included | Ninja V unit, Master Caddy II x 1, 12V-3A AC power supply |
| Optional extras | Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, EVA case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hoodPower Kit: 2 x battery, 1 x charger, 1 x power supply Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration |
All specifications correct when published, subject to E&OE.
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
* Available in future firmware updates
*** No HDMI spec for 2K DCI
^ From supported HDMI sources such as gaming consoles and graphics cards.
^^ Optional unit (XDCA-FS7) needed for Raw output.
