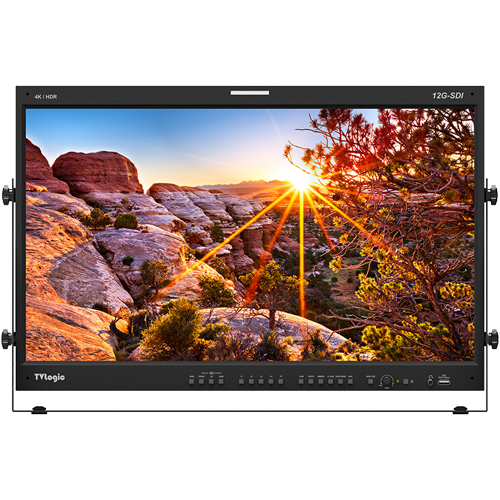

TV Logic LUM-242H 24″ LCD Monitor +4K/UHD Interface
Call for Price
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,500cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle.
HDR Emulation
The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.
| Manufacturer |
|---|
Specs
Display Spec.
| Size | 24″ |
| Resolution | 3840 x 2160 (16:9) |
| Pixel Pitch | 0.137mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 150cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 527(H) X 296(V) mm |
Input
| 4 X BNC | 3G-SDI A/B/C/D Channel Input |
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 4 X BNC | 3G-SDI A/B/C/D Channel Output |
| 4 X BNC | HD SDI A/B/C/D Channel Output |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| – |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | |
| Conversion | SDI-to-SDI, |
Options
| Stand, Carrying Case, ND Acrylic Filter, V-Mount |
