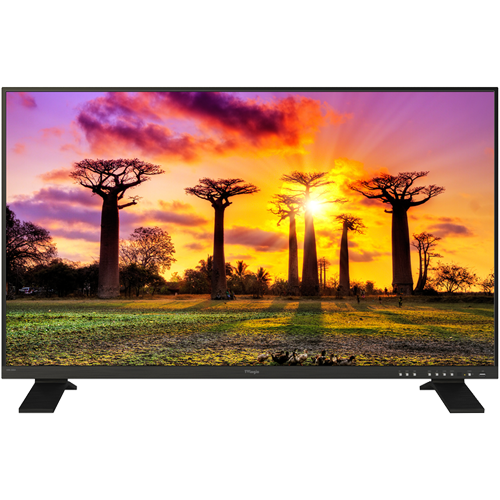

TV Logic LUM-550M2 55″ 4K LCD Monitor
Call for Price
The LUM-550M2 is a 4K/UHD monitor with a 55″ True UHD(3840×2160) resolution and true 10-bit drivers
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Time Code Display
Displays the Timecode information on the screen.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
HDR Emulation
The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.
| Manufacturer |
|---|
Specs
Display Spec.
| Size | 55″ |
| Resolution | 3840 X 2160 (16:9) |
| Pixel Pitch | 0.315mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,100:1 |
| Display Area | 1209.6(H) x 680.40(V) mm |
Input
| 4 X BNC | 3G-SDI A/B/C/D Channel Input |
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 4 X BNC | 3G-SDI A/B/C/D Channel Output |
| 4 X BNC | 1 x 12G-SDI OUTPUT |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| – |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, Key Lock, Luma(Y’) Zone Check, Marker, Time Code Display, Waveform/Vector, SingleMode, Camera Lut. |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma |
Other Functions
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | HDMI-to-SDI, SDI-to-SDI, |
Options
| Stand, Carrying Case, |
