TV Logic R-5T Multi Channel Rack Monitor 3×5 5″ LCD
Call for Price

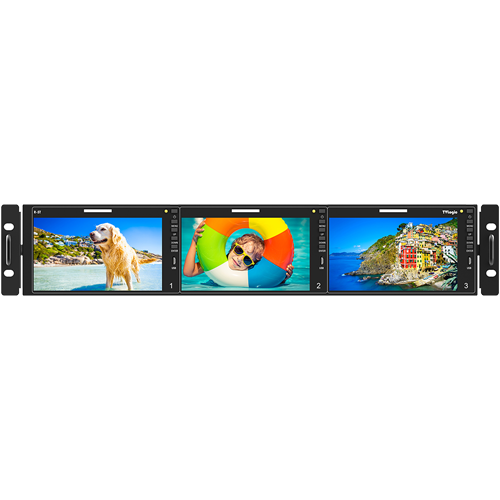

The R-5T is a brand-new rack monitor(3 x 5.5”) with advanced design and performance.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
H/V Delay
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
Key Lock
Locks the knob or key control.
Luma(Y’) Zone Check
Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
User Aspect
Adjusts the Width /Height display ratio.
Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
| Manufacturer |
|---|
Specs
Display Spec.
| Size | 5.5″ |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.0213(W) x 0.0639(H) |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 122.7(H) × 69.0(V) mm |
Input
| 2 X BNC | 3G-SDI A/B Channel Input |
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 4 X BNC | 1 x 12G-SDI OUTPUT |
Audio
| – |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Conversion | SDI-to-SDI, |
