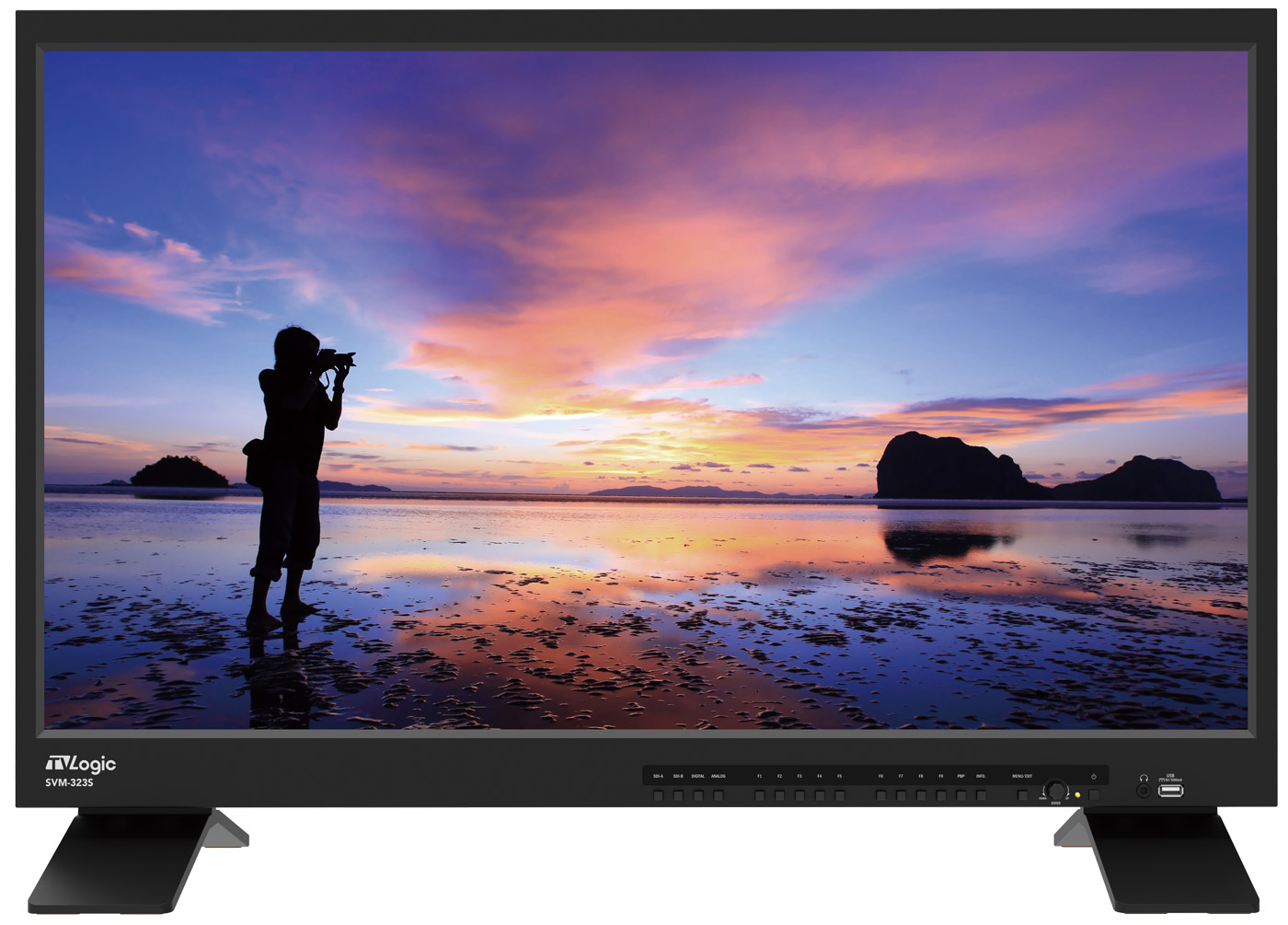

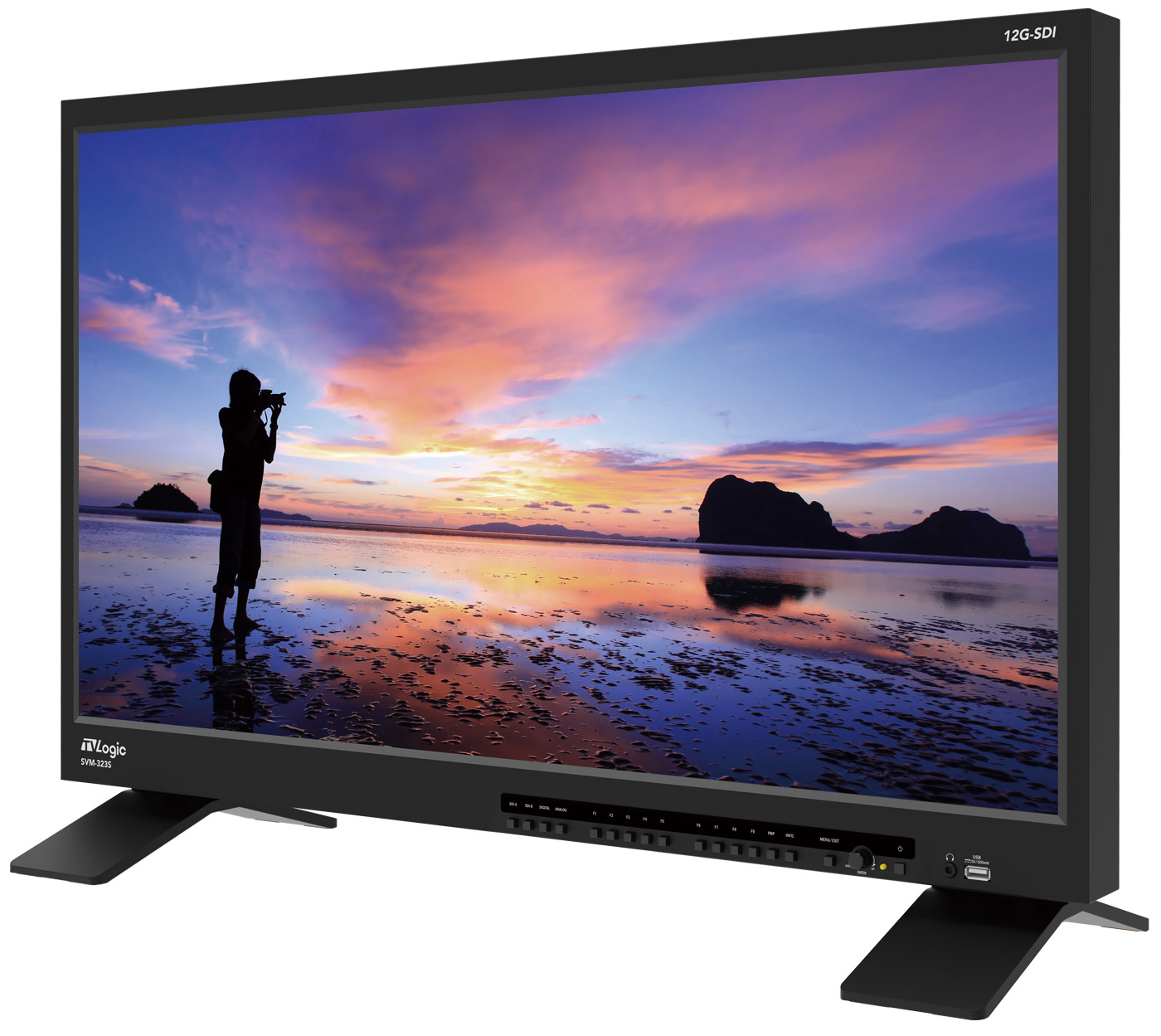

TVLogic SVM-323S 31.5″ 12G-SDI with Full HD LCD Monitor

The SVM-S is an 31.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.

Product Highlights

• Display Resolution 1920 x 1080

• lObit {l.073 Billion) Colors*

• 2 x 12G-SDI Input and Loopout

• Dual SFP Input

• HDMI 1.4 Input

• Processed Monitor Output

• 12G-SDI Input to 3G-SDI Processed Output

• HDR (PQ, HLG, S-LOG3)

• Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)

• Custom 3D LUT Import by USB Flash Drive

• Built-in Camera LUTs

• Auto Detection of SDI Payload ID

• Waveform (YCbCr, RGB)

• Vector Scope

• Histogram

• Audio Level Meter

• Audio Phase Meter

• Color Settings Save & Apply

*SVM-2435 only

LCD Panel

• Size: 31.5”
• Resolution: 1920 x 1080 (16:9)
• Pixel Pitch: 0.363(H) x 0.363(V) mm
• Color Depth: 16.7M Colors
• Viewing Angle: 178°(H) / 178°(V)
• Brightness: 400cd/m2
• Contrast Ratio: 1200 : 1
• Display Area: 698(H) x 393(V) mm

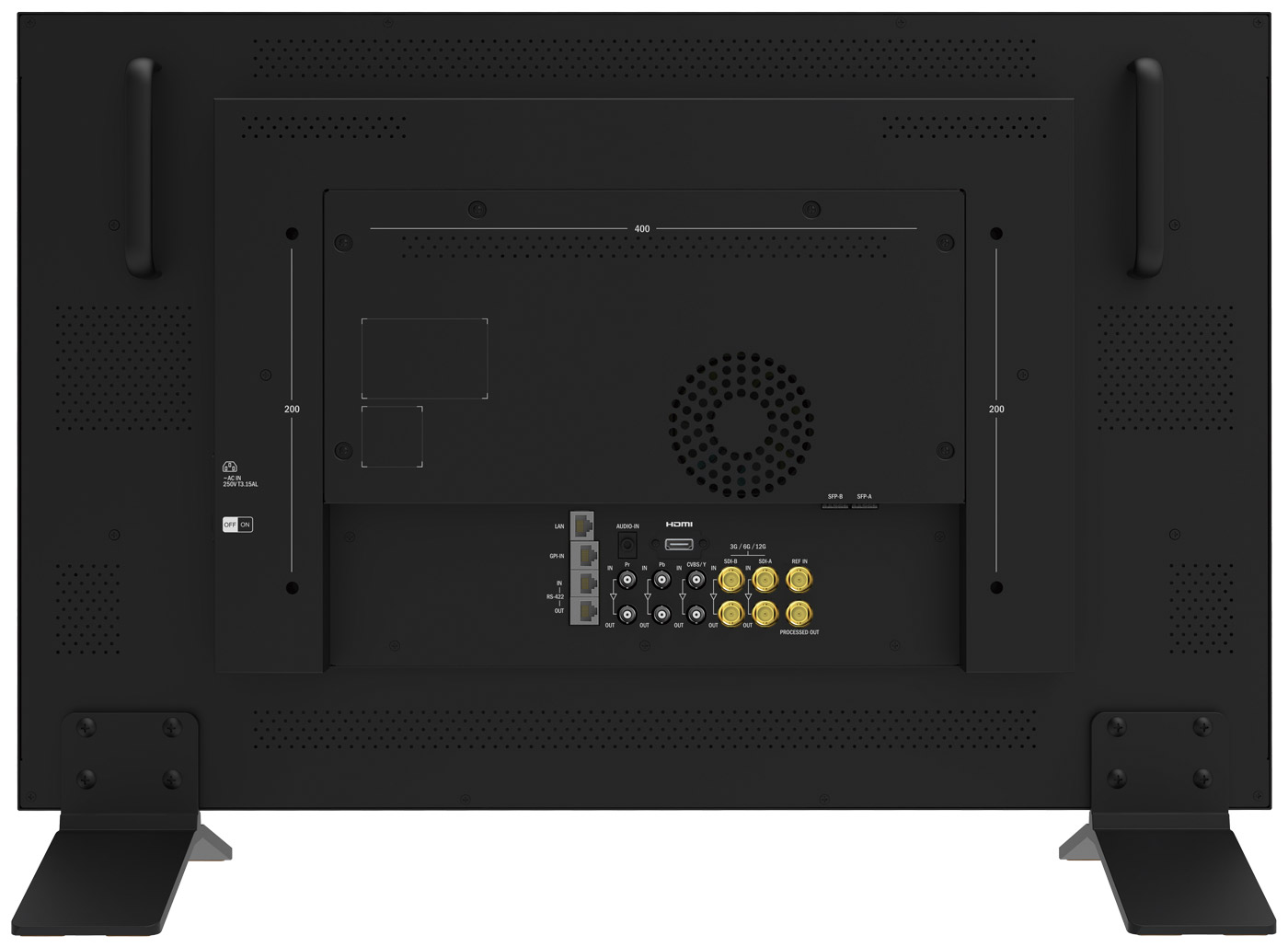

Input

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
• 3 x BNC: YPbPr, CVBS Input
• 1 x HDMI: HDMI Input
• 2 x SFP: SFP A/B Channel Input
• 1 x BNC: Reference Input

Output

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
• 3 x BNC: YPbPr, CVBS Output
• 1 x BNC: Processed Output
