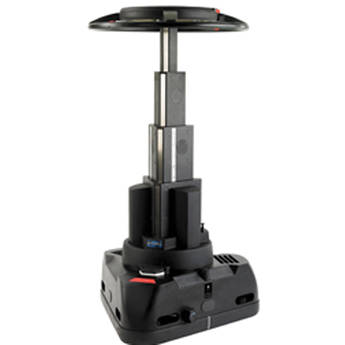

The Vinten V3963-0002 Quattro-SL Pedestal is a high performance, 4-stage small base pedestal capable of handling a wide range of studio cameras. This pedestal provides extensive on-shot movement capability with full crab and steer functionality. Both Quattro versions provide an extensive height range capability and the opportunity to achieve creative lower angle shots. Vinten’s standard of high quality pedestals for both soundstages and on-location shoots, along with their design innovation ensure the perfect shot every time.
Four-Stage Constuction
The four-stage Quattro column has been specifically designed to maximise rigidity and minimise torsional twist. Its triangular structure prevents any unwanted movement during operation.
High Payload Capacity
The Quattro-SL can hold up to 176 lbs, making it a premium performer for most studio cameras.
Low-Pressure Counterbalance
Vinten’s Low-Pressure counterbalance system compensates perfectly for gravity.
Adjustable Elevation
The Quattro-SL four-stage design provides adjustable height capabilities that include an extreme low angle.
On-Shot Capability
A pedestal’s on-shot stroke (vertical distance the pedestal can be lifted with one smooth motion) is very important in the studio.
Steering Ring
Crab and steer movement is achieved by using the a detachable Steering Ring. The Steering Ring is equipped with two moveable indicators, allowing the camera operator to produce quick reference points for various camera positions.
Wheel Brakes
Control the wheels simply by using the durable foot-operated braking buttons.
Small Base
This model Quattro offers a small base and steering wheel for smaller studios and doorways.
Package Includes
- Vinten V3963-0002 Quattro-SL 4-Stage Small Base Pedestal (Black) – Supports 176 lbs
- Base and Column
- Pump
- Wheel
- Weights
- 2 Year Warranty
Specifications
| General | |
| Load Capacity | 176 lb (80 kg) |
| Trim Ring | 11 lb (5 kg)) |
| Bowl Diameter/Thread | Flat, 4-Bolt |
| Steering Ring Diameter | 29.3″ (74.5cm) |
| Folded/Transport Length | N/A |
| Minimum Height | 18.5″ (47cm) |
| Maximum Height | 57.8″ (147cm) |
| Weight | 331 lb (150 kg) |
| Warranty | 2 Year Warranty |
| Post | |
| Stages | 4 |
| On-Shot Stroke | 39.4″ (100cm)) |
| Dolly | |
| Doorway Tracking Width | 32″ (81cm)) |
| Transit Doorway Width | 29.3″ (74.5cm) ) |
| Narrow Doorway Width | 29.3″ (74.5cm)) |
| Wheel Diameter | 6.3″ (16cm) |
